EVM 10÷120
Fan Coil Units with cabinet and 6-speed or EC inverter centrifugal fans.

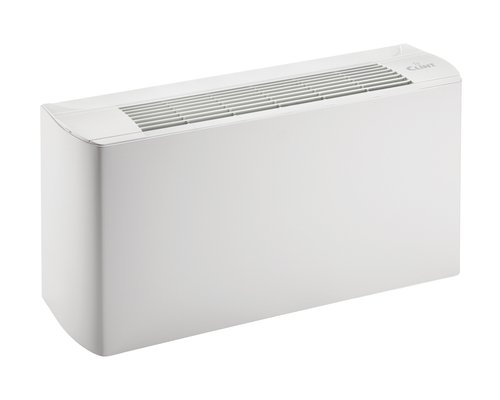

The hydronic Fan Coil units with cabinet, EVM 10÷120, feature an exclusive and compact design combined with the highest efficiency and noiseless operation.
When part of a hydronic system equipped with a liquid chiller, the unit generates cool air silently and with instantaneous reaction. While, during the winter, if combined with a thermal system, it provides warm air, making possible to meet home or business heating needs. An easily removable and cleanable air filter absorbs and retains dust in suspension, keeping the air quality at a suitable level and allowing the execution of continuous cleaning cycles, which are particularly important to guarantee suitable hygiene standards, especially in highly frequented rooms. All installation needs are considered, from the possibility of horizontal and vertical installations, with front, bottom or rear intake to a wide range of accessories, also for 4-Pipe systems, which includes a complete control panel collection, that can be installed on-board or in the room.
Units are available both with 6-Speed or EC Inverter fans. The units equipped with EC Inverter motor modulate the air flow, adapting the performances instant to instant to the actual needs of the room to be conditioned, assuring a total comfort with greater energy savings.
Versions
- EVM/VP - Vertical unit with bottom inlet and vertical delivery
- EVM/VH - Vertical unit with front inlet and vertical delivery
- EVM/VE - Horizontal unit with rear inlet and horizontal delivery
- EVM/VO - Horizontal unit with bottom inlet and horizontal delivery
- EVM/VP/EC - Vertical unit with EC inverter fans, bottom inlet and vertical delivery
- EVM/VH/EC - Vertical unit with EC Inverter fans, front inlet and vertical delivery
- EVM/VE/EC - Horizontal unit with EC Inverter fans, rear inlet and horizontal delivery
- EVM/VO/EC - Horizontal unit with EC Inverter fans, bottom inlet and horizontal delivery
Power range
- 1.4-8.4 kW
- 0.4-2.4 Ton
Features
- Cabinet made of thick steel-sheet, galvanized and highly resistant to abrasion. Bearing structure made of galvanized steel-sheet with internal thermal-acoustic insulation. Air delivery grill by fixed fins made of ABS, adjustable on two positions, equipped with small sliding side doors for easily access to the internal control panel.
- Air filter easy to remove and to wash, made of a metal frame holding filtering section.
- Condensate drain pan provided with natural condensation drain and thermal insulation.
- Heat exchanger coil made of copper pipes and aluminium fins, water connections provided with anti-torsion system, manual air vent and water drain valves.
- Fan section provided with centrifugal fans with double air inlet and last generation plastic blades, directly coupled to the 6-Speed electric motor with 3 speeds connected in the standard configuration.
- Fan section provided with centrifugal fans with double air inlet and last generation plastic blades, directly coupled to the EC Inverter electronic motor. Modulating regulation with 0-10Vdc signal with control panels provided as accessory or with independent regulation system.
- Standard water connections on the left side in front of the unit. Reversible on site.
Accessories
Factory fitted accessories
- LX Hydraulic coil connections on the left side
- RX Hydraulic coil connections on the right side
- WS Hot water coil for 4-Pipe system
- EH1 Supplementary electrical heater
- EH2 Supplementary electrical heater enhanced
- UCB Universal regulation card with Modbus RTU protocol
- SNA Air temperature sensor for UCB
- SNW2 Summer/winter water temperature sensor for UCB
- SNW3 Minimum water temperature sensor for UCB
Loose accessories
- Z Couple of feet
- MP1 Condensate drain pump for vertical versions
- MP2 Condensate drain pump for horizontal versions
- C1 Auxiliary condensate drain pan for vertical versions
- C2 Auxiliary condensate drain pan for horizontal versions
- PP Rear panel
- TP Rear closure
- SG Manual damper with grid
- SMG On/off motorized damper with grid
- V23 3-Way on/off valves for 2-Pipe system
- V23M 3-Way modulating valves for 2-Pipe system
- V25 3-Way on/off valves with 2 shut-off (ball) for 2-Pipe system
- V25M 3-Way modulating valves with 2 shut-off (ball) for 2-Pipe system
- V22 2-Way on/off valves for 2-Pipe system
- V22M 2-Way modulating valves for 2-pipe system
- V26 2-Way on/off valves with 2 shut-off (ball) for 2-Pipe system
- V26M 2-Way modulating valves with 2 shut-off (ball) for 2-Pipe system
- V43 3-Way on/off valves for 4-Pipe system
- V43M 3-Way modulating valves for 4-Pipe system
- V45 3-Way on/off valves with 4 shut-off (ball) for 4-Pipe system
- V45M 3-Way modulating valves with 4 shut-off (ball) for 4-Pipe system
- V42 2-Way on/off valves for 4-Pipe system
- V42M 2-Way modulating valves for 4-Pipe system
- V46 2-Way modulating valves with 4 shut-off (ball) for 4-Pipe system
- V46M 2-Way modulating valves with 4 shut-off (ball) for 4-Pipe system
- TA1 Wall mounted electronic ambient thermostat for AC versions
- VR1 Wall mounted electronic speed control panel for AC versions
- DR1 Wall-mounted manual electronic control panel for AC versions
- DR2 Wall mounted automatic electronic control panel for AC versions
- DRH1 Wall mounted configurable electronic control panel for AC versions
- DRH2 Wall mounted configurable electronic control panel for AC/EC versions
- VB1 On board electronic speed control panel for AC versions
- DB1 On board manual electronic control panel for AC versions
- DB2 On board automatic electronic control panel for AC versions
- DBH1 On board configurable electronic control panel for AC versions
- DBH2 On board configurable electronic control panel for AC/EC versions
- DBH3 On board configurable electronic control panel for EC versions
- DBE1 On board electromechanic control panel for AC versions
- DBE4 On board electromechanic control panel with TMB4 for AC versions
- DBE3 On board electromechanic control panel with TMB3 for AC versions
- IRC Digital wall control panel for UCB
- MC4 Multicontrol connection card for AC version
- SNW4 Water temperature sensor
- TMB3 Minimun hot water temperature thermostat 32°C
- TMB4 Minimum hot water temperature thermostat 42°C
Technical data
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | |||
| Cooling | Total cooling capacity (1)(2) | kW | 1,36 | 1,60 | 2,04 | 2,41 | 3,20 | 3,70 | 4,65 | 5,20 | 5,82 | 6,30 | 7,50 | 8,44 |
| Sensible cooling capacity (1)(2) | kW | 1,22 | 1,38 | 1,76 | 2,00 | 2,51 | 2,90 | 3,95 | 4,41 | 4,92 | 5,24 | 6,60 | 7,20 | |
| Water flow (1)(2) | l/h | 233 | 275 | 350 | 414 | 549 | 635 | 798 | 892 | 999 | 1081 | 1287 | 1448 | |
| Pressure drops (1)(2) | kPa | 2 | 15 | 4 | 22 | 10 | 12 | 25 | 18 | 40 | 33 | 20 | 15 | |
| Heating | Heating capacity (3)(2) | kW | 1,89 | 1,97 | 2,81 | 2,94 | 3,75 | 4,26 | 5,93 | 6,47 | 7,57 | 7,79 | 9,88 | 10,45 |
| Water flow (3)(2) | l/h | 329 | 342 | 490 | 513 | 653 | 741 | 1032 | 1128 | 1319 | 1357 | 1721 | 1821 | |
| Pressure drops (3)(2) | kPa | 2 | 16 | 6 | 25 | 11 | 13 | 31 | 22 | 41 | 39 | 21 | 16 | |
| Rows | Quantity | n° | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Water connections | In / Out | "G | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" |
| Air flow | Max | m³/h | 368 | 389 | 472 | 498 | 676 | 713 | 966 | 1019 | 1104 | 1166 | 1740 | 1836 |
| Med | m³/h | 261 | 276 | 365 | 385 | 509 | 538 | 720 | 760 | 851 | 899 | 1547 | 1633 | |
| Min | m³/h | 186 | 197 | 239 | 252 | 346 | 365 | 477 | 504 | 537 | 567 | 1381 | 1457 | |
| Air flow (EC version) | Max | m³/h | 368 | 389 | 472 | 498 | 676 | 713 | 966 | 1019 | 1104 | 1166 | 1740 | 1836 |
| Min | m³/h | 186 | 197 | 239 | 252 | 346 | 365 | 477 | 504 | 537 | 567 | 1381 | 1457 | |
| Additional coil | Heating capacity (4)(2) | kW | 1,60 | 1,65 | 2,29 | 2,39 | 3,39 | 3,59 | 4,59 | 4,79 | 5,65 | 5,79 | 7,98 | 8,18 |
| Water flow (4)(2) | l/h | 140 | 144 | 201 | 210 | 297 | 315 | 402 | 420 | 495 | 507 | 700 | 717 | |
| Pressure drops (4)(2) | kPa | 10 | 11 | 13 | 14 | 23 | 25 | 10 | 11 | 13 | 14 | 23 | 24 | |
| Water connections (In / Out) | "G | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" | ½" | |
| Rows | n° | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| EH1 Electrical heater | Power supply | V/Ph/Hz | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 |
| Absorbed power | kW | 0,7 | 0,7 | 1,0 | 1,0 | 1,5 | 1,5 | 2,0 | 2,0 | 2,0 | 2,0 | 2,0 | 2,0 | |
| EH2 Electrical heater | Power supply | V/Ph/Hz | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 |
| Absorbed power | kW | 1,0 | 1,0 | 1,5 | 1,5 | 2,0 | 2,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | 3,0 | |
| Electrical characteristics | Power supply | V/Ph/Hz | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 |
| Max absorbed power | kW | 0,05 | 0,05 | 0,07 | 0,07 | 0,07 | 0,07 | 0,13 | 0,13 | 0,15 | 0,15 | 0,21 | 0,21 | |
| Electrical characteristics (EC version) | Power supply | V/Ph/Hz | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 | 230/1/50-60 |
| Max absorbed power | kW | 0,05 | 0,05 | 0,06 | 0,06 | 0,06 | 0,06 | 0,07 | 0,07 | 0,07 | 0,07 | 0,17 | 0,17 | |
| Sound pressure | Max (5) | dB(A) | 44 | 46 | 48 | 49 | 45 | 45 | 51 | 53 | 54 | 56 | 59 | 60 |
| Med (5) | dB(A) | 35 | 37 | 41 | 42 | 38 | 38 | 45 | 45 | 48 | 49 | 57 | 58 | |
| Min (5) | dB(A) | 28 | 28 | 33 | 33 | 28 | 28 | 36 | 36 | 37 | 37 | 53 | 54 | |
| Sound pressure (EC version) | Max (5) | dB(A) | 44 | 46 | 48 | 49 | 45 | 45 | 51 | 53 | 54 | 56 | 59 | 60 |
| Min (5) | dB(A) | 28 | 30 | 31 | 32 | 30 | 30 | 34 | 35 | 34 | 36 | 52 | 52 | |
| Weights | Transport weight | kg | 16 | 16 | 19 | 20 | 25 | 26 | 29 | 30 | 33 | 35 | 37 | 41 |
| Operating weight | kg | 14 | 14 | 16 | 17 | 23 | 24 | 26 | 28 | 30 | 32 | 34 | 38 | |
Dimensions
| 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | |||
| L | STD/EC | mm | 670 | 670 | 870 | 870 | 1070 | 1070 | 1270 | 1270 | 1470 | 1470 | 1670 | 1670 |
| W | STD/EC | mm | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| H | STD/EC | mm | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 | 470 |
| D | STD/EC (6) | mm | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
Notes
- 1 Ambient air temperature 27 °C d.b./19 °C w.b., water temperature 7/12 °C.
- 2 Performances also valid for EC version.
- 3 Ambient air temperature 20 °C d.b., water temperature 45/40 °C,
- 4 Ambient air temperature 20 °C d.b., water temperature 65/55 °C.
- 5 Sound pressure level measured at 1 m from the unit with reverberation time 0,5 s.
- 6 Feet height.
- N.B. (1) Inhibited ethylene glycol can be added to the water.
- N.B. (2) Maximum operating pressure 1500 kPa.
- N.B. (3) Maximum inlet water temperature 90 °C.
