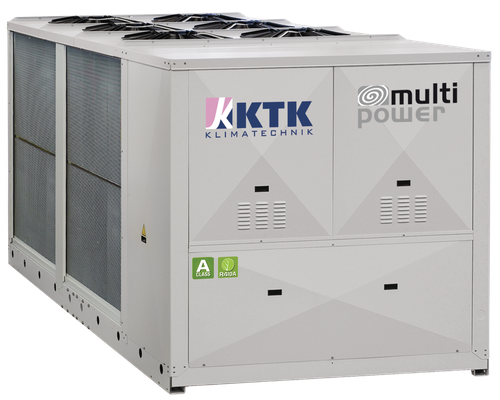

TWA/WP 212÷682 S/K/P/A


TWA/WP 212÷682 S/K/P/A

A CLASS ENERGY EFFICIENCY AIRCOOLED REVERSIBLE HEAT PUMPS WITH AXIAL FANS, SCROLL COMPRESSORS AND PLATE EXCHANGER.

_ktk_icon_versions_cooling_heating.png _ktk_icon_compressor_scroll.png _ktk_icon_axial_fan.png _ktk_icon_plate.png _icon_A_CLASS_2018_KTK_heating.png _ktk_icon_refrigerant_R410A.png ktk_icon_refrigerant_R452B.png ktk_icon_refrigerant_R454B.png

The TWA/WP 212÷682 S/K/P/A reversible Heat Pumps are characterized by A CLASS energy efficiency.
The units are characterized by multi-compressor design on double cooling circuit, to reach high energy performances, reduction of current at start-up, elimination of inertial tanks and excellent silent functioning. The use of components built in large series makes them highly reliable and the management of an high number of compressors allows increased life span with reduction of machine stopping risks and easier maintenance operations. A wide range of accessories, factory fitted or supplied separately, complete the outstanding versatility and functionality of the series.
Are available as option the new EC Inverter fans with high available static pressure and efficiency.
Units are designed for hot water production up to 55°C.

On request, units can be supplied with R452B and R454B refrigerant.

Versions

  • TWA/WP - Reversible Heat Pump
  • TWA/WP/SSL - Super silenced reversible Heat Pump

Power range

  • 227-762 kW
  • 65.0-217 Ton

Features

  • Self-supporting galvanized steel frame protected with additional protection achieved via polyester powder painting.
  • Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
  • Axial fans directly coupled to an electric motor with external rotor.
  • Condenser made of copper tubes and aluminium finned coils.
  • Evaporator AISI 316 stainless steel braze welded plates type with two independent circuits on the refrigerant side and one on the water side, complete with water differential pressure switch. On the units it is always installed an antifreeze heater.
  • Cooling circuit shut-off valve on liquid line in 302÷682 models.
  • Electronic expansion valve.
  • Electronic high and low pressure gauges.
  • R410A refrigerant. On request R452B or R454B refrigerant.
  • Electrical board includes: main switch with door safety interlock, fuses or magnetothermic switches, thermal protection relays for compressors and thermocontacts for fans.
  • Functioning in heating mode with outside air temperature down to -15 °C.
  • Microprocessor control and regulation system.
