URT/ECO/REC-WH 051÷212 S/K

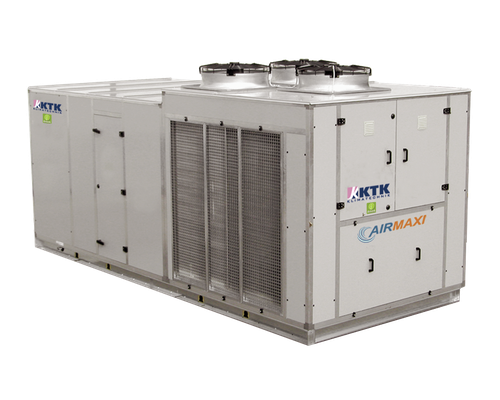

DOUBLE SKIN PACKAGED ROOF TOP UNITS WITH SCROLL COMPRESSORS, RADIAL FANS OR EC INVERTER PLUG-FANS, ECONOMIZER AND WHEEL HEAT RECOVERY.

_ktk_icon_versions_cooling_only.png _ktk_icon_compressor_scroll.png _ktk_icon_centrifugal_fan.png _ktk_icon_EC_INVERTER_PLUG_FAN_2016.png _ktk_icon_double_skin.png _ktk_icon_WHEEL_REC_2016.png _ktk_icon_refrigerant_R410A.png

The double skin packaged Roof Top units of this series are the ideal solution for the air conditioning of wide surface areas for public use such as halls, shopping centres, cafeterias, restaurants and health centres, or for industrial environments such as food processing or preservation centres. Those units feature Scroll compressors with R410A refrigerant and radial fans or EC Inverter Plug-Fans. The EC Inverter Plug-Fans with high energy efficiency backward blades both for intake as well as delivery are managed by an electronic control adjusting fans' rotational speed to adapt the air flow to the system capacity.
Equipped with extruded aluminium alloy sections and 50mm-thick sandwich panelling, these units are available in Cooling only and Reversible Heat Pump version.
The flat or pocket filters help to keep the air quality at a suitable level in order to guarantee appropriate hygiene standards.
The ECO/REC-WH units have an high level of modularity and adaptability to every plant-engineering need: these units feature, in addition to the basic sections, an ECONOMIZER automatically controlled both in FREE-COOLING or FREE-HEATING and a WHEEL HEAT RECOVERY, able to treat up to 100% of total air flow.

Versions

  • URT/ECO/REC-WH - Cooling only with radial fans, Economizer and Wheel Heat Recovery
  • URT/WP/ECO/REC-WH - Reversible Heat Pump with radial fans, Economizer and Wheel Heat Recovery
  • URT/EC/ECO/REC-WH - Cooling only with EC Inverter Plug-Fans, Economizer and Wheel Heat Recovery
  • URT/EC/WP/ECO/REC-WH - Reversible Heat Pump with EC Inverter Plug-Fans, Economizer and Wheel Heat Recovery

Power range

  • 57.9-252 kW
  • 16.0-72.0 Ton

Features

  • Structure of base perimeter made of steel sheet elements galvanised. Frame made of extruded aluminium alloy profiles connected by 3 way joints. Assembling of the base to the frame is of dual support and grants the walking on the base panels installation without sticking out screws. 50mm thick sandwich panels made of prepainted steel sheet; water proofing granted by gaskets having shape memory for perfect seal up even after repeated removals. Section connection is effected by means of assembling conic stirrups and water proofing is granted by gaskets.
  • Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
  • Condenser and evaporator with copper tube and aluminium finned coil.
  • Delivery & intake radial fans coupled to 3-phase motors by V belt and variable pulley.
  • High efficiency delivery & intake reverse blade EC INVERTER PLUG-FANS, with electronic speed control to easily adapt to the system characteristics.
  • Electronic expansion valve.
  • R410A refrigerant.
  • Electrical board includes: door interlocking isolator, fuses, thermal protection relays on compressors, thermocontacts for the fans of the condensing unit and contactors for the fan motors of the air handling unit.
  • Microprocessor for the automatic control of the unit.
